LERGB Video -6100 Series

Plug in Decoding Matrix

4K input/output / 36 screen segmentation /

Visual feedback / WEB control

LE-6100 Series

The 6100 series high-definition decoder products are specifically designed for various types of network security monitoring environments in the market, supporting the use of various front-end and back-end devices (including NVR, IPC, and dome cameras) to easily achieve real-time monitoring of local and remote devices. The high-definition decoding server is oriented towards the market with high-quality appearance, perfect images, and ultra-high cost-effectiveness advantages, achieving an economical solution that is easy to operate, highly compatible, stable, and greatly saves engineering costs.

6100-S16（1.5U）

6100-S16(2.5U)

6100-S36(1.5U)

6100-S36(2.5U)

넳 넲

Single output interface supports decoding up to 1-channel simultaneously 800W@30 , or 4-channel 1080P@30 , or 9-channel 720P@30 , or 16-channel D1 real-time decoding

Powerful decoding ability

Product Features

Custom logo and software name Support for automatic device rotation function Real-time synchronization operation for multiple terminals

Standard WEB control

Support network camera audio input and 3.5mm external audio output Provide you clear and realistic sound effects

External audio output

Product Parameters

model	6100-S16		6100-S36
Case specifications	1.5U	2.5U chassis	1.5U chassis	2.5U chassis
Business card slot	6	12	6	12
Interface expansion card slot	1	2	10	20
Maximum output route number	22 Road output	44 Road output	10 Road output	20 Road output
Card specifications	Output card: 2 output decoding cards, 4 output decoding cards Input card: 1 input coding card, 2 input coding card, 4 input coding card Master card: 2-channel output decoding, with a 100 / 1000M network port. Expansion card: Interface expansion card.		Output card: 2-channel output decoding cards. Input card: 1 input coding card, 2 input coding card, 4 input coding card Master card: 2-channel output decoding, with a 100 / 1000M network port. Expansion card: Interface expansion card.
Support decoding format	H.265,H.264
Support for the camera pixels	800W,500W,400W,300W,200W,130W,D1,CIF
Network video input	Super large capacity setting, 1000 channel camera input management, scalable.
HDMI import	Support HDMI encoding input with support resolution: 1920 * 1080,1280 * 1024,1280 * 720,1024 * 768
HDMI output	HDMI1.3 output		HDMI1.4 output
Single-way output Decoding function	Single screen: 800W, 500W, 400W, 300W; 4 Picture: 200W; 9 Division: 100W (1280 * 720); 16 split: D1 (720 * 576)		Single screen: 2-road 800W; 4 screen: 4 road 400W; 18 Split: 100W (1280 * 720); 36 Division: D1 (720 * 576);
Picture segmentation	Single circuit (single screen) HDMI output supports 1 / 4 / 9 / 16 screen arbitrary segmentation display		Single circuit (single screen) HDMI output supports 1 / 4 / 9 / 16 / 36 screen arbitrary segmentation display
Splicing function	Support M * N arbitrary combination of splicing display mode (Up to 40 display screens, input and output collocation, multi-machine cascade support 128 screens or more screens splicing)
Other functions	Support switching, roaming, superposition, painting in painting, wheel patrol, screen cut, patrol cut and other display modes
Cascade management	Support for multi-machine cascade unified management
network interface	10M / 100M / 1000Mbps Adaptive Ethernet interface

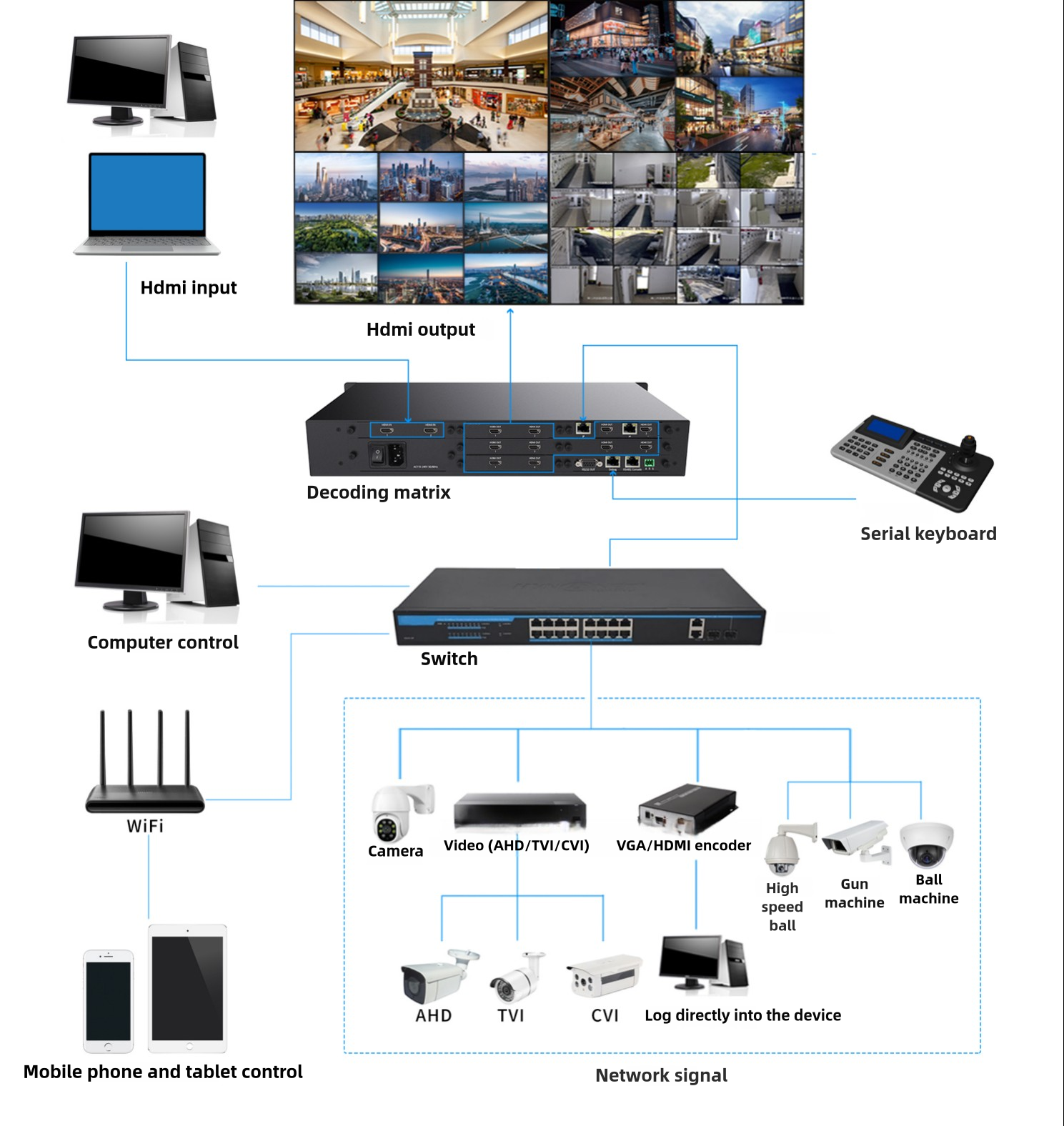

Topological Graph

4K high-definition Capable of displaying more details and layers Accurately presenting detailed scenes

Powerful decoding ability

Standard WEB control

External audio output

4K high-definition decoding
