Integrated splicing processor (LE - 3600 series)

 Integrated splicing processor (LE-3600 series)

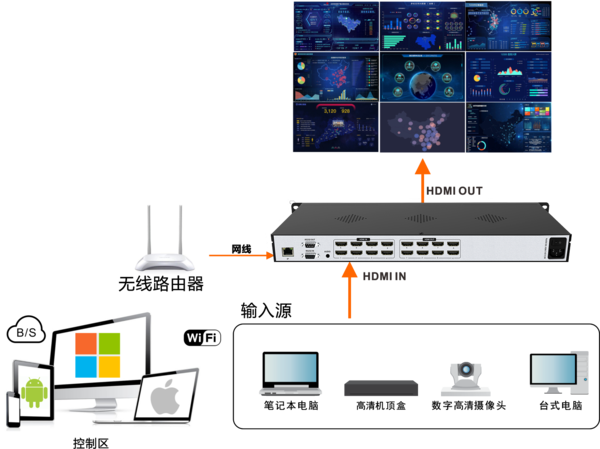

The 3600 series multi-screen splicing processor is a high-performance video image processing workstation with a pure hardware architecture and no operating system. It employs a large-capacity, high-speed FPGA array and a CrossPoint digital multi-bus data routing and switching mechanism to ensure all signal images are displayed continuously. Simultaneously, it boasts extremely high stability and a fast startup speed, supporting 24/7 uninterrupted stable operation.

Product Features

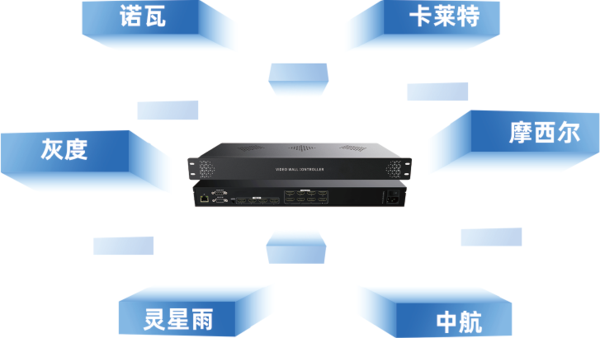

support each big factory send card

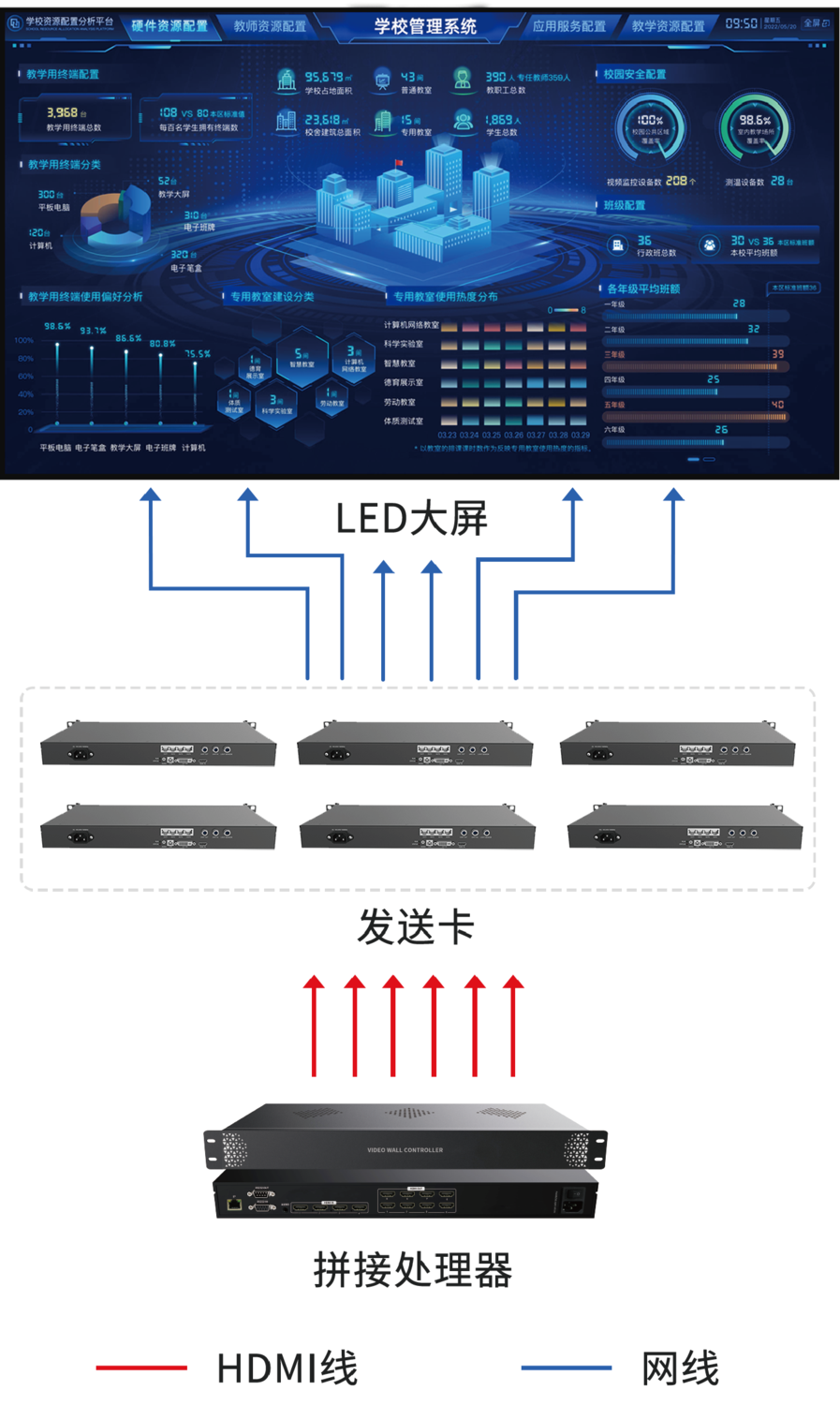

supports the sending cards of nova, kalet, lingxingyu, mocil, gray scale, avic and other major manufacturers without worrying about compatibility. Helps to meet the various needs of different users, thereby providing more personalized solutions

multi-function with one card, high cost performance

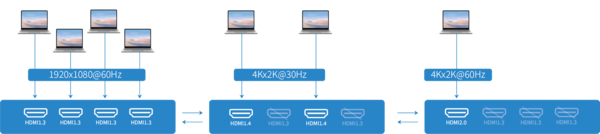

1-4 input can be switched to 4 HDMI1.3 or 2 HDMI1.4 5-8 input can be switched to 4 HDMI1.3 or 2 HDMI1.4 or 1 HDMI2.0;(8-8 is required to support)

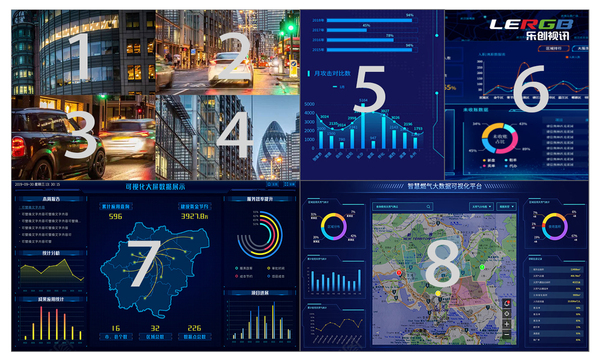

Shared 8 windows

Flexible multi-layer display, single output card supports 8 2K layers and 2 4K layers; Single screen supports up to 8 2K layers

Super loaded, super clear picture quality

input characteristics: support 3840x 2160 resolution input, support custom resolution input-limit width 7680, limit height 4320. Output with load: 4 (8.4 million), 8 (16.8 million), 12 (25.2 million)
